プラスチック管の放出ライン
Created with Pixso.

Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine

Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine

ブランド名: AORUI
モデル番号: SJ75/33
Moq: 1セット
価格: negotiable
支払条件: 30%はT/Tで前払い,70%はT/TまたはL/Cで送料前
供給能力: 月10セット
詳細情報
起源の場所:
中国
証明:
CE Certificate
Condition:
New
Automatic grade:
Fully automatic
Screw Design:
Single screw
ブランド名:
Aorui
Plastic processed:
PE
Warranty time:
1 year
Place of original:
China
Voltage:
380V 50HZ
Certificate:
CE certificate
After-sales service:
Engineer availiable to service
パッケージの詳細:
木材,フィルム,パレットなど,または顧客の要求に応じて.
供給の能力:
月10セット
ハイライト:

Automatic PE pipe making machine

,

HDPE corrugated pipe extruder

,

Drainage system Pipe Extruder Machine

製品説明
Automatic PE Corrugated Pipe Making Machine For Drainage Systems, SJ65/33 HDPE Corrugated Pipe Extruder Machine
Attribute Value
Condition New
Automatic grade Fully automatic
Screw Design Single screw
Brand Name Aorui
Plastic processed PE
Warranty time 1 year
Place of original China
Voltage 380V 50HZ
Certificate CE certificate
After-sales service Engineer available to service
PE Corrugated Pipe Machine Overview

The SJ65/33 HDPE corrugated pipe production line is a high-efficiency, stable, and professional equipment specifically designed for manufacturing high-density polyethylene (HDPE) single-wall corrugated pipes, suitable for small-diameter pipes ranging from Φ16mm to Φ40mm.

Featuring modular design and coordinated operation of components, this equipment ensures the production of corrugated pipes with excellent properties such as high strength, corrosion resistance, and impact resistance. It is widely used in municipal drainage, telecommunication cable protection, agricultural irrigation, and other fields.

Equipment Components & Features
  • Extrusion System (SJ65/33 Single-Screw Extruder)
    • Screw Specifications: 65mm diameter, 33:1 length-to-diameter ratio, ensuring uniform plasticization and stable extrusion
    • Temperature Control System: Utilizes PID precise temperature control with segmented heating for complete material melting
    • Energy Efficiency: Optimized screw design reduces energy consumption while improving production efficiency

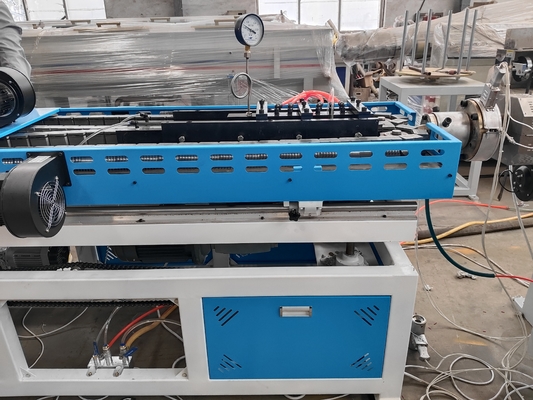

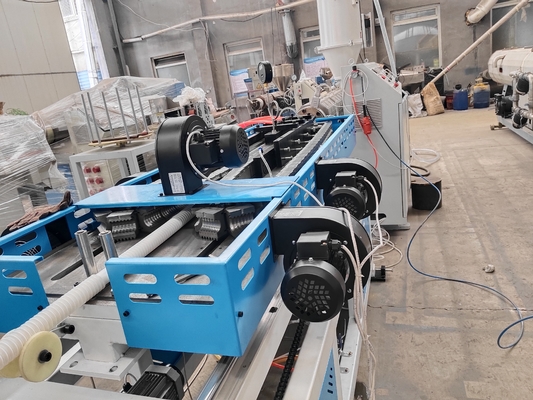

  • Molding Module (Corrugated Pipe Molding Machine)
    • Modular Design: Allows quick replacement of molding modules for different specifications (16mm/20mm/25mm/32mm/40mm)
    • Vacuum Calibration: Ensures uniform corrugation shape, consistent wall thickness, and smooth inner/outer surfaces
    • High-Strength Structure: Made of high-quality alloy steel for wear resistance and long-term continuous production
  • Cooling System
    • Spray Water Cooling + Vacuum Calibration: Efficient cooling prevents pipe deformation and enhances dimensional accuracy
    • Water Circulation System: Energy-saving and eco-friendly, reducing water consumption
  • Haul-Off Unit
    • Variable Frequency Speed Control: Ensures smooth traction with adjustable speed for different production needs
    • Automatic Centering: Maintains pipe straightness, preventing eccentricity or bending
  • Cutting Machine (Optional)
    • Automatic Length Cutting: Precise cutting to set lengths with clean edges
    • Pneumatic/Electric Drive: Easy operation with low maintenance costs

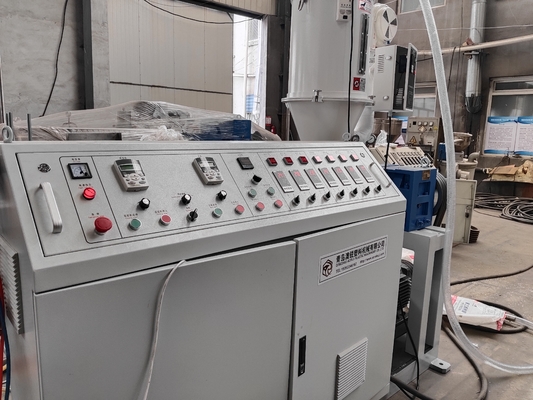

  • Control System
    • PLC + Touchscreen: Intelligent control with real-time monitoring of temperature, pressure, speed, and other key parameters
    • Fault Alarm: Automatic diagnostics for abnormalities, minimizing downtime
Technical Parameters
Parameter Common Forming Type High Speed Forming Type
SJ45 SJ65 SJ45 SJ65
Forming System Mould turn on table Mould turn in channel
Mould Connect by chain 38-72 pairs No chain Connect 44-72 pairs
Speed 5-12 meters/minute 5-20 meters/minute
Hose diameter 6-65mm(OD) 6-65mm(OD)
Applications
Municipal Engineering: Residential drainage, rainwater collection systems
Telecommunication & Power: Optical fiber cable and wire conduit protection
Agricultural Irrigation: Water-saving drip irrigation pipelines
Industrial Use: Chemical fluid transport, ventilation ducts
